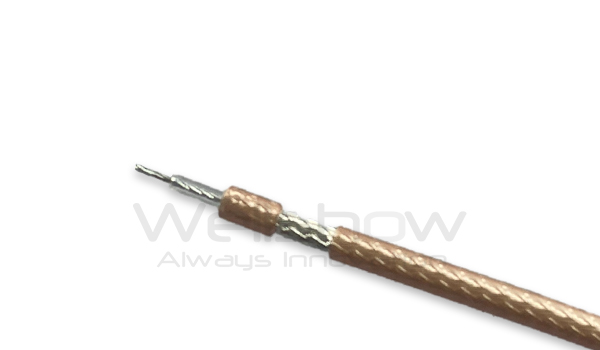

RG178, silver-plated shielding, FEP dielectric, brown jacket, 50ohm
Downloads
|
Conductor (A) |
Insulation (B) |
Braid Shield (C) |
Jacket (D) |
|
|---|---|---|---|---|
|
Diameter/Structure |
AWG30 (7/0.102 mm) |
0.86 mm |
16/3/0.092 mm |
1.8 mm |
|
Material |
Silver-coated Copper Clad Steel |
FEP |
Silver-coated Copper |
FEP |
General Specification
- Impedance: 50 ohm
- Operating Temperature: -40°C ~ + 200°C
- Minimum Bend Radius: 8 mm
The RG178 coaxial cable is a 50-ohm single braid shielded flexible cable, capable of operating from 0 to 6GHz. With a diameter of just 1.8mm, it's ideal for applications where space is limited.
RG178 is commonly used in telecommunications, aerospace, and military applications, including GPS antennas, Wi-Fi systems, and radio communications, where compactness and high-frequency capability are essential.
For more information about RG178 cable attenuation, diameter, and electrical properties, please refer to the cable specifications.
RG178 cable is commonly terminated with:
- IPEX MHF connectors
- MMCX connectors
- MCX connectors
- SMA connectors
- SMB connectors
- FME connectors
- TNC connectors
- N connectors
