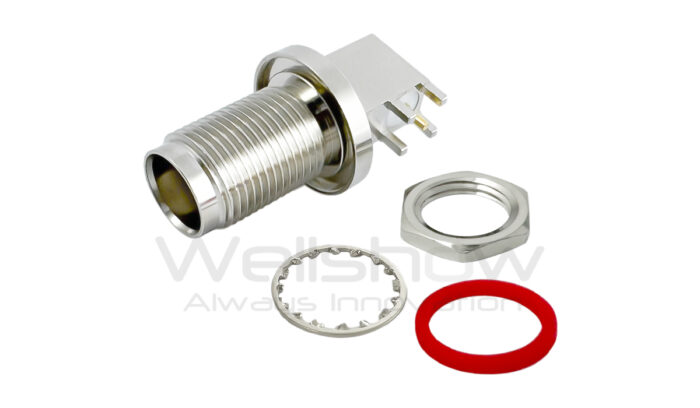

TNC Female Right Angle Bulkhead w/Oring, Thru-Hole PCB, 50ohm, 4GHz, 5psi

Product Number: C18DOWS28T
Feedback

Downloads

C18DOWS28T PDF Customer Drawing

RF Connector TNC Female Right Angle Bulkhead w/Oring, Thru-Hole PCB, 50ohm, 4GHz, 5psi

Applications:

Antenna
Cable Assembly
Telecommunication
Automotive
Instrumentation
Wireless System

TNC Connector Features and Benefits:

Thread Coupling Mechanism:
  • Ensures a robust and secure connection with its screw-on design, making it ideal for applications that require high resistance to vibration.
Wide Frequency Range Options:
  • 50 ohm Impedance: Frequency range DC-6GHz.
  • 75 ohm Impedance: Frequency range DC-3GHz for video and broadcasting-related industries.
Versatile Design Options:
  • Cable connectors are compatible with various cable types, including miniature coaxial cables, flexible cable and Low Loss cables.
  • Panel connectors offer multiple mounting options, including 4-Hole, 2-Hole, Bulkhead Front Mounting and Rear Mounting.
  • Through-Hole PCB connector is available.
Parts Status Active
Series TNC
Gender Female Body/Female Pin
Coupling Mechanism Threaded
Orientation Right Angle
Termination Style PCB-Thru Hole
Contact Termination Solder
Ground Termination Solder
Mounting Type Panel Mount
Mounting Feature Bulkhead Rear Mount
IP Rating IP67 Before Mating
Terminates to Cable N/A
Isolated No
Extended Dielectric No
Impedence 50ohm
Frequency (Max.) 4GHz
VSWR (Max.) 1.5
Body Material Brass
Body Finish Nickel
Center Contact Material Phosphor Bronze
Center Contact Finish Gold
Dielectrica Material Teflon(PTFE)
Temp. (Max.) 165℃
Temp. (Min.) -65℃
